High quality PE Carbon Spiral Reinforcing Pipe making machine/extrusion production line
Shandong Huasu Plastic Technology Co., Ltd. --- PE Plastic Processed and Pipe Application Production Line for PE Carbon Spiral Pipe Manufacturer
Equipment Configuration
| No. | Name & Model | Quantity |
| 1.0 | Single Screw Extruder SJ-90/30 | 1 set |
| 2.0 | Die head and Calibrator | 5 sets |
| 3.0 | Forming Machines STCJ—200 | 1 set |
| 4.0 | Haul—off Machine STLQ—200 | 1 set |
| 5.0 | Cutting Machine | 1 set |
| 6.0 | Winding Machine | 1 set |
| 7.0 | Control system | 1 set |
| Extruder | Motor | Max Output | Note |
| SJ-90/30 | 37kw | 80-180kg/h | |
PE carbon spiral pipe production line is widely used:
The unit produces PE carbon spiral pipe, mainly used for (light) cable jacket protection, and gradually applied to the power, telecommunications, postal services and highways, ports and other infrastructure areas.
Features of PE Carbon Spiral Reinforcing Pipe equipment plant extruder extrusion line production making machine:
1. Single screw extruder specially used for polyolefine material possess effective plasticizing effect and extrusion speed
2. The special detached type compounding screw an die head with spiral structure & reasonable channel are application to produce pipes with smooth inside and outside face
3. unique calibration and cooling mode is capable of produce pipe with diameter from 50mm to 200mm, production speed is up to 0.4-1.5m/min
4. All kind of polyolefine material, multi-layers spiral strengthen pipe can be co-extruded, recycled material can be used in production.
5. Pipe diameter from 16mm upto 1600mm
6. With different kind wall thickness for different application
7. Can make the pipe have different layers, such as: Middle use recycled material and inner and outer layer use new material
8. Can also have color line co-extrusion for choice
9. Can have some word to be printed on that.
10. Can have auto powder feeding machine for choice
11. Can have PLC touch screen control
Process flow:
Plastic automatic loader →Hopper plastic dryer→ Single screw extruder (Mark line extruder)→ Mould and calibrator → Vacuum forming machine → Water cooling tank → Haul off machine →winder
Direction for use
It is widely used in producing HDPE water supply pipes, gas supply pipes. It can make HDPE pipes with diameter from 16mm to 1200mm. With many years of plastic machinery development and design experience, this Hot sell best-selling small diameter pvc hdpe pe ppr plastic pipe production extrusion machine line with price has the unique structure, the design is novel, the equipment entire line layout is reasonable, the control performance is reliable. By different requirement, this HDPE pipe line could be designed as multiply-layer pipe extrusion line.
Product Tags:
|
|

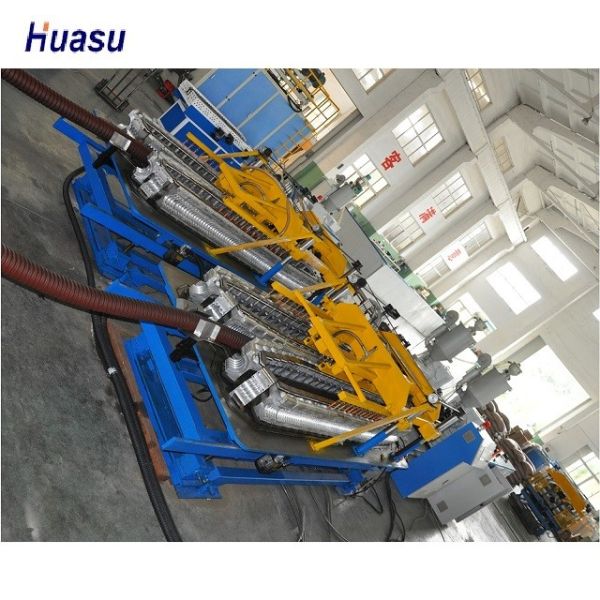

80mm PE Carbon Spiral Reinforcing Pipe Making Machine Images
|
