ID 30-63mm Water Cooling PE Spiral Pipe Production Line SJ-65/30 18.5kw
PE Spiral Pipe Production Line
- Application: electrical wire conduit
- Pipe length: according the customer’s inquiry
- Recommended raw material: new material for PE pipe
| NO | Inner Diameter ( mm) |
| 1 | 30 |
| 2 | 50 |
| 3 | 63 |
| Power | 380 V x 60 Hz x 3 Phase |
| Total Power | 55kw |
| Cooling Water | Recycling water. ≤20℃, ≥0.3Mpa, ～3T/h |
| Compressed air | 0.3m3/min, ＞0.5Mpa |
| Line Dimension | 18m×2.7m×2.5m |
| No. | Name & Model | Quantity |
| 1.0 | Single Screw Extruder SJ-65/30 | 1 set |
| 2.0 | Die head and Calibrator | 3 sets |
| 3.0 | Forming Machines STCJ—160 | 1 set |
| 4.0 | Haul—off Machine STLQ—160 | 1 set |
| 5.0 | Cutting Machine | 1 set |
| 6.0 | Winding Machine | 1 set |
| 7.0 | Control system | 1 set |
Advantage
-Bimetallic alloy screw barrel, wear-resistant, corrosion-resistant, improve the service life.
-Reasonable design of bracket flow channel, low pressure and low temperature extrusion, high efficiency and energy saving.
-High efficiency vacuum system makes tube forming more perfect.
-The closed water cooling structure makes the tube forming faster.
-The closed cooling water circuit adopts fixed connection, and the replacement module does not need to dismantle the interface, so as to prevent water leakage.
-The installation of the card slot module makes the replacement of the module convenient and quick, and shortens the interval time of reproduction.
-The perfect optimization of running track makes the module run more smoothly.
-Double hydraulic and double cutter head make the cutting more accurate and faster. The high-speed and efficient production reduces the cost of the same unit pipe by 30%.
Feature of Huasu corrugated pipe extrusion line
1. Suitable to U-PVC,C-PVC,M-PVC ,PE, PPR,PP,HDPE,LDPE pipe extrusion
2.High quality PVC pipe machine/PIPE extrusion line/plastic making machinewith various diameter and wall thickness, from 16-800mm.
3. the plastic pipe production line mainly includes twin screw extruder, pipe extrusion die, vacuum calibrating water tank, spray cooling water tank, hauling unit, cutting unit and stack unit.the extruder is specially designed for producing variours pipe.
4.adoped the Simens, ABB, Schneider famous brand electric components and high quality extruder alloy screw and barrel
5. Supply technical service, formula guide and staple raw material purchase
Contact: Ellen Liu
Shandong Huasu Plastic Technology Co., Ltd.
Qingdao Huasu Machinery Fabricate Co., Ltd.
Product Tags:
|
|

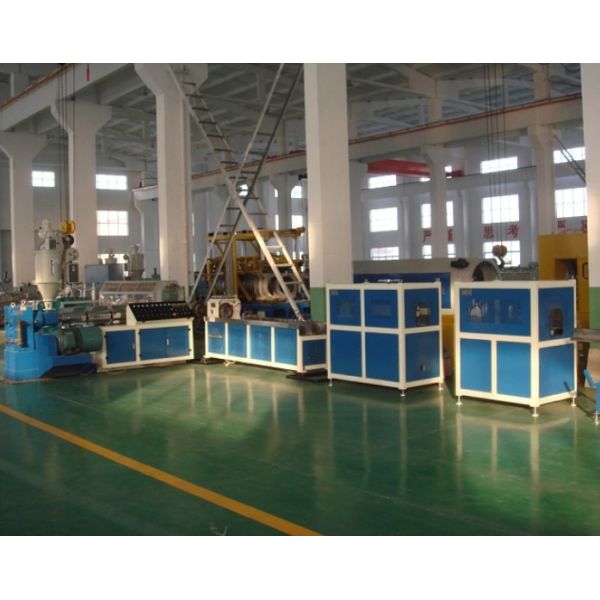

ID63mm Water Cooling 18.5kw Spiral Pipe Production Line Images
|
